Gard

Multishot contact/remote electroshock device with a changeable clip for 5 cartridges

GARD is a pistol-shaped electroshock weapon with CDC (charge delivery cartridge) placed in a holder with an electrode — a copper wire with a plummet and an aim-attachment device (hook) at its end.

When the trigger is pushed, a high voltage discharge initiates two CDCs, which fire the electrodes from the weapon to the target. After an electric arc is created, the target receives a high-voltage discharge of a specific shape causing paralysis or pain effect based on PDG’s (personal defensive gadget) electric exposure technology. Duration of the exposure is defined by the time the trigger is being pushed. After the trigger is depressed, used CDCs are thrown out of the weapon. One clip has 10 CDCs for 5 charges.

The weapon has two operations mode: remote and contact.

Лазерный указатель

Laser Designator

The weapon has a built-in laser designator (LTD) which indicates the point of hitting of the top sensitive element. Aiming can also be done with the front and rear sights which are located on the body of the weapon.

The LTD can be regulated in two dimensions.

Contact Method

The weapon has a button enabling the independent contact method that allows to apply a high-voltage on the action electrodes without a shot even with the loaded clip.

Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД Клавишу независимого контактного действия, ГАРД
Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД Механический стопор, ГАРД

Mechanical Lock

The weapon has a mechanical lock of the trigger, when pushed it is used to capture the offender. The device has a built-in timer that delivers electric impulses with a special algorhythm.

Механический стопор

(only available for special services)

The weapon’s controls are designed so that the device can be handled by both left and right hand.

The weapon GARD is easily manipulated by one hand allowing the other to hold a service firearm to take a full control over the situation.

Таймер

Timer

The electronics of the weapon have built-in timer that limits total time of electrical charge of one shot.

Do not apply the weapon on:

The heart and head area

Elderly people, pregnant women or under age

People wearing wet clothes or staying in the water

A rechargeable LiPO battery is used to power the GARD electronics

A rechargeable LiPO battery is used to power the GARD electronics.

The weapon is equipped with a special holster to be worn

The weapon is equipped with a special holster to be worn.

GARD performance characteristics

Cycles of operation at one charge

minimum 150

Effective impulse length

75-90 μs

No-load/on-load voltage

50 kV / 1300 V

Maximum width

39 mm

Maximum width of the grip-handle

28 mm

Pulse repetition frequency

90-120 hz

Temperature range

-10 / +50˚С

Average neutralization time

1-5 sec.

Length

223 mm

Height

150 mm

Number of charges in a clip

5

Number of cartridges in a clip

10 pcs.

Fully equipped weight

600 g

Laser Pointer Designator

available

Batteries

12 V LIPO, 550 mAh

Electric power

W

For a remote application GARD uses a

cartridge CDC-1

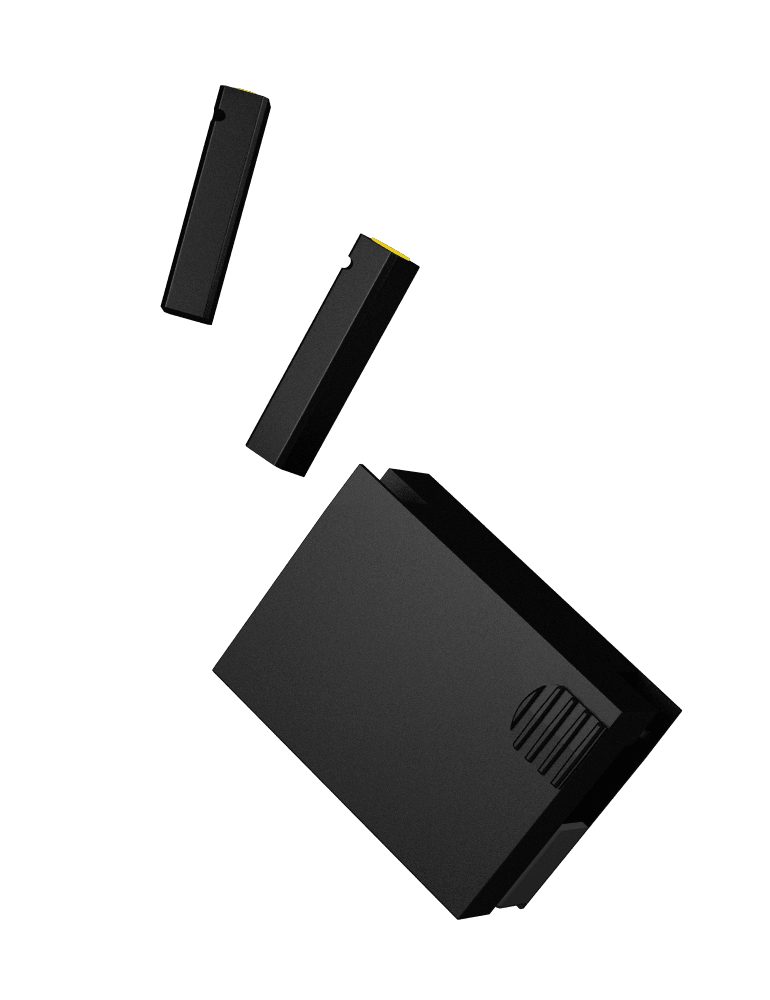

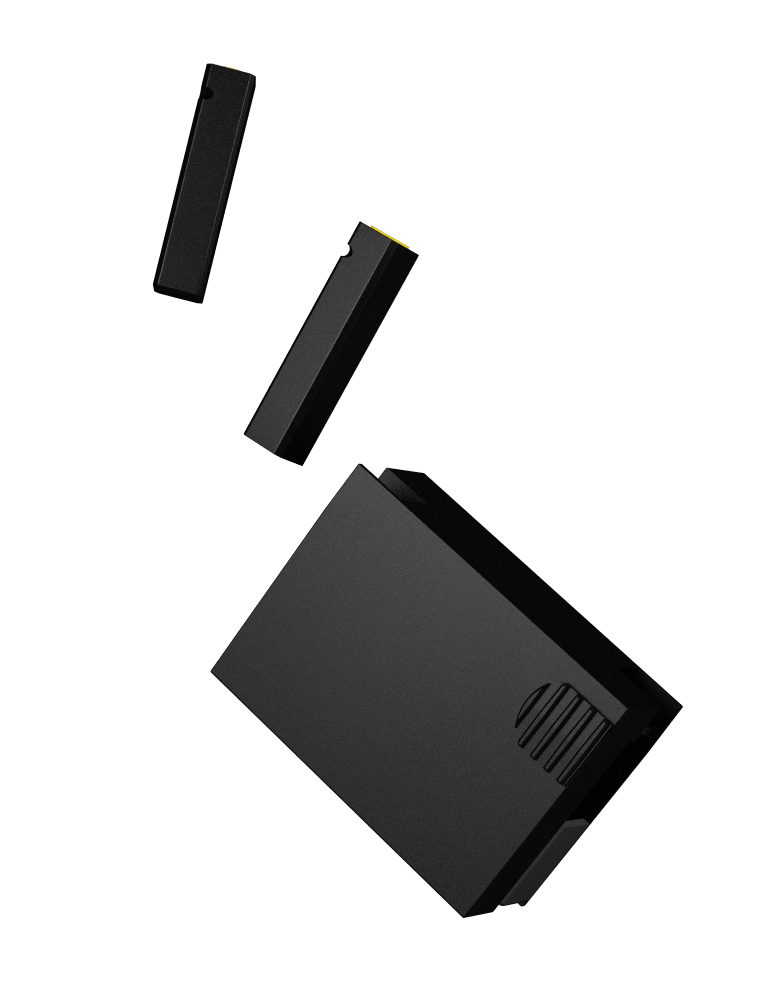

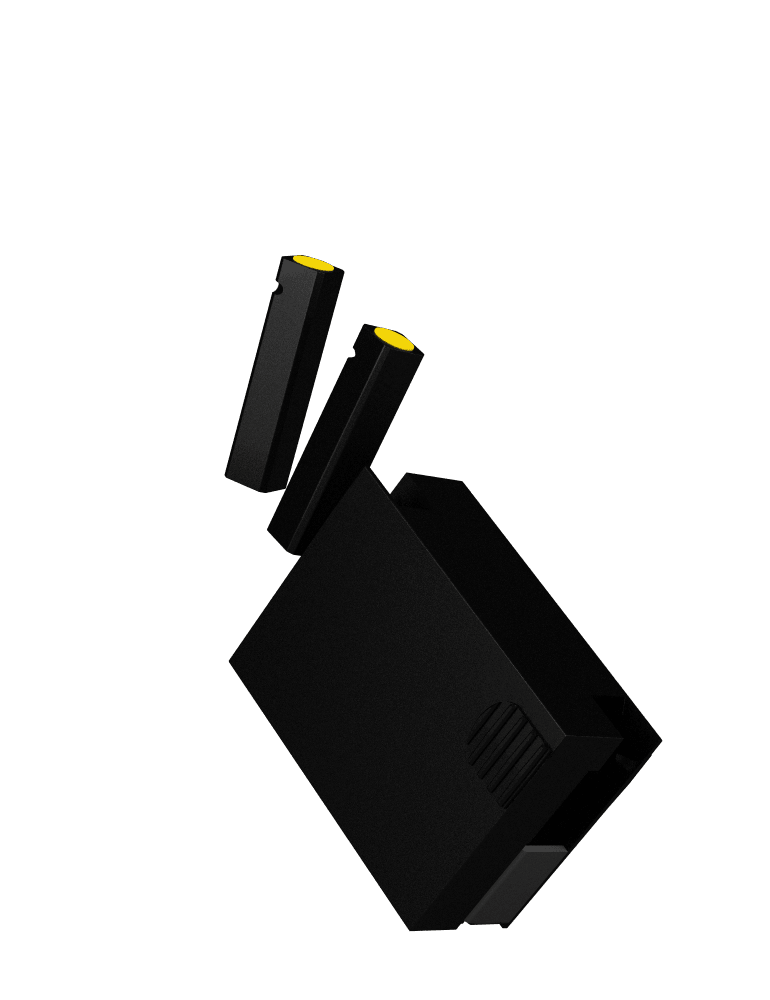

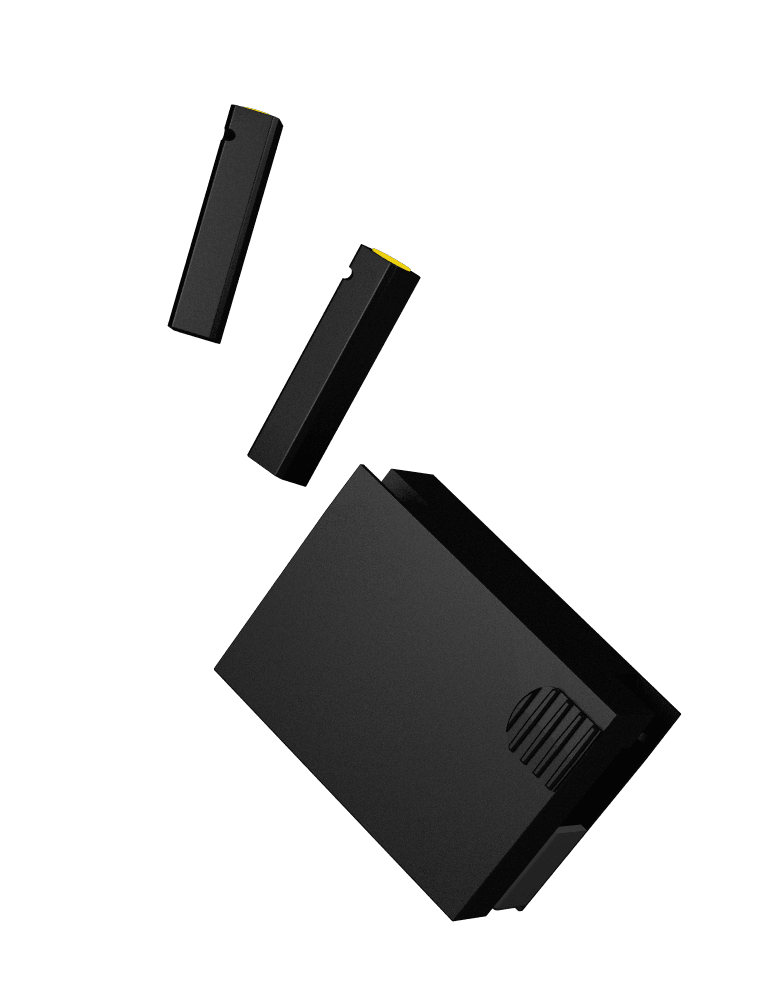

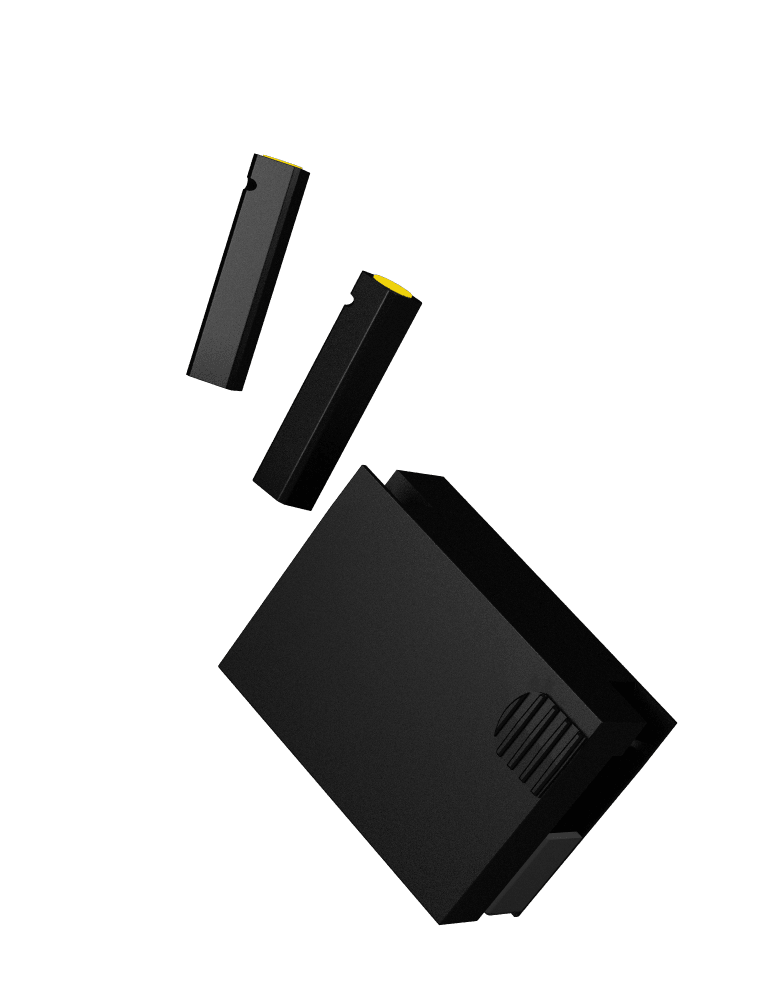

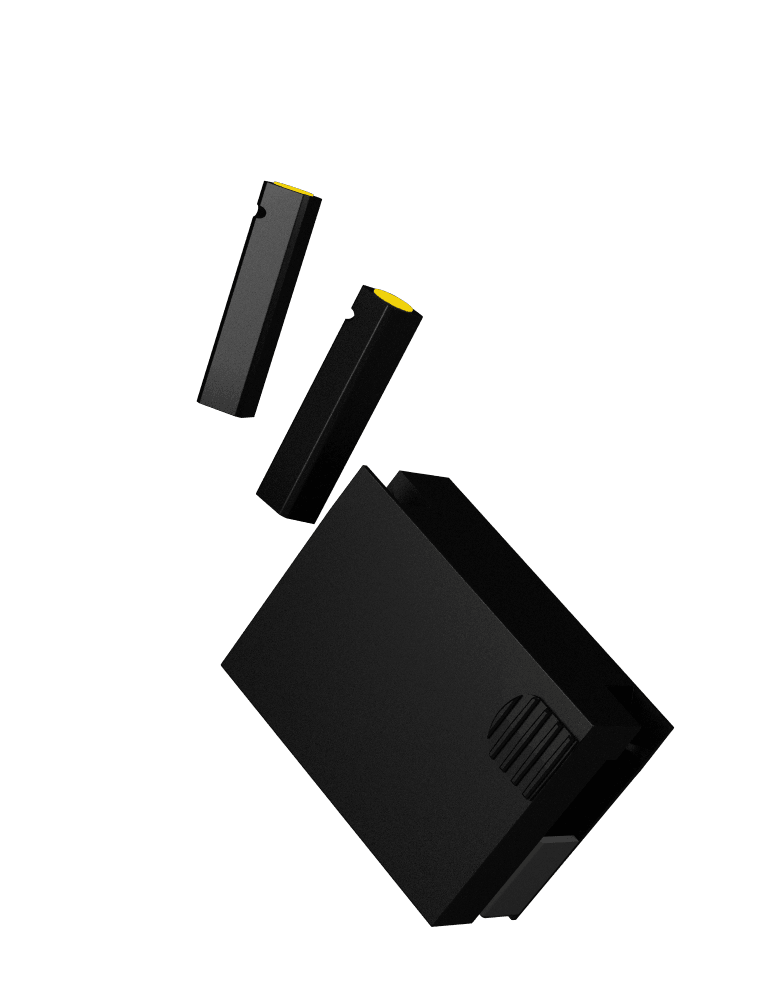

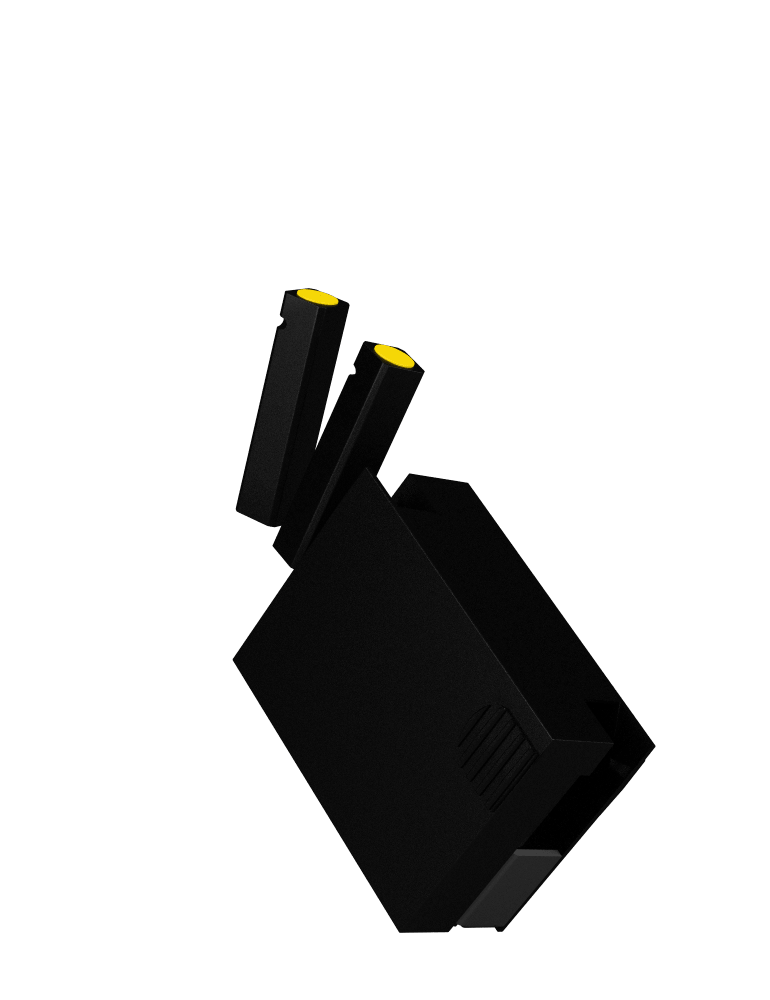

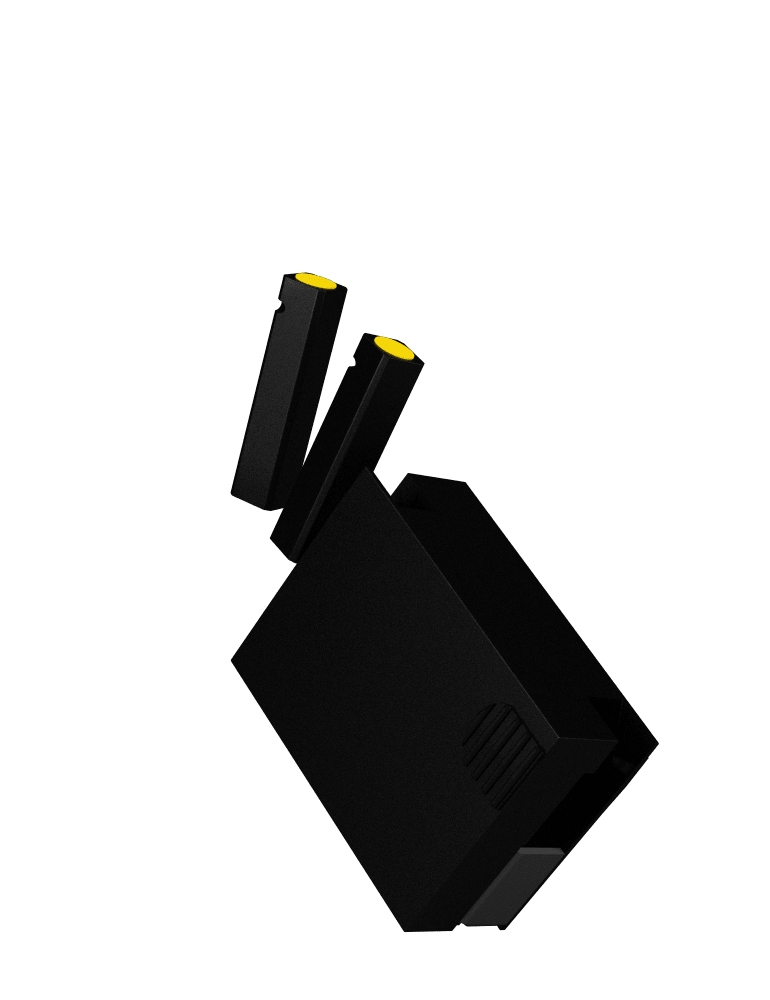

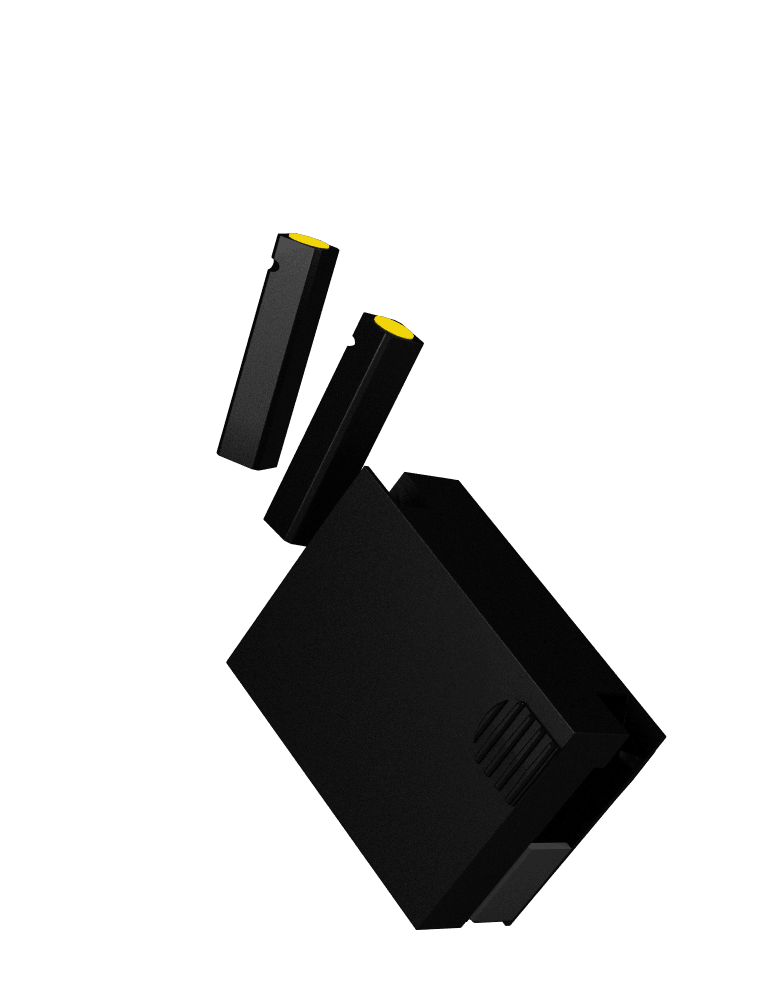

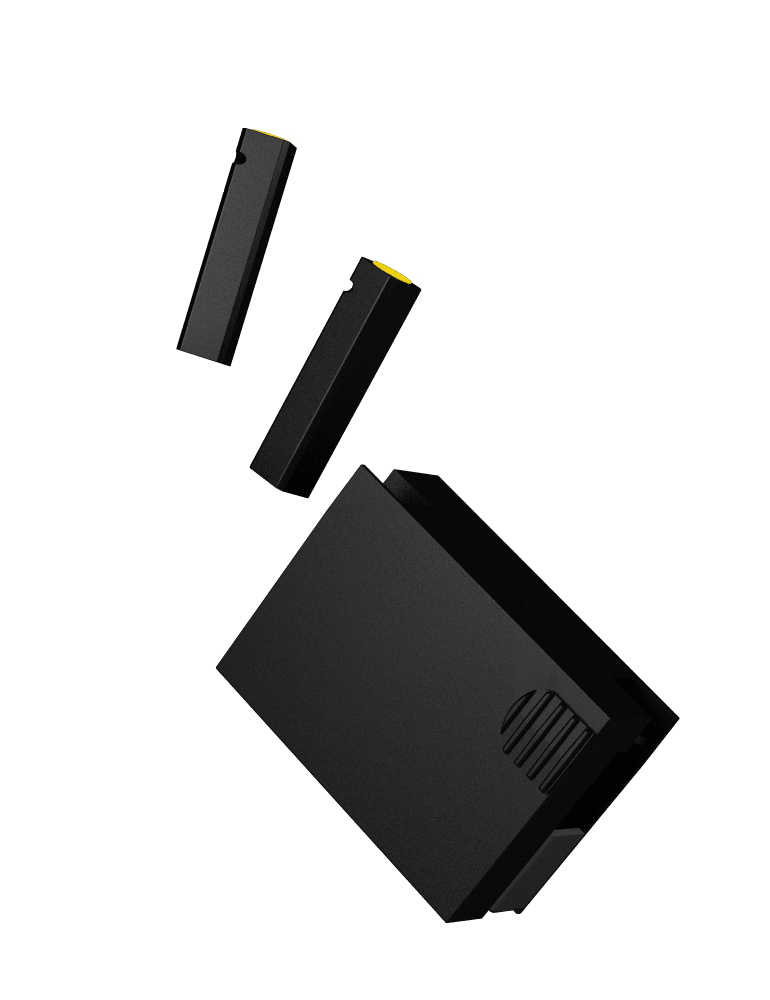

Cartridge

CDC — Charge Delivery Cartridge, ejection type — baric.

CDC is designed to deliver electrical impulses of high voltage.

For a remote application GARD uses a CDC-1 (charge delivery cartridge).

Cartridges are placed in a special clip which ensures safe transportation of cartridges as well as convenient and fast standby when needed.

When reaching the target the wire remains tight which prevents it from overlapping and target release.

The electrodes are made of soft materials and have extended diameter to prevent kinetic injuries while hitting the target.

Gard CDC performance characteristics

Length

55 mm

Height

12 mm

Minimum response

0,02-0,04 J

Electrode technology

SoftDart

Width

12 mm

Weight

12 g

Attacking distance (CDC-2 bare wire)

10 m

Attacking distance (CDC-1 coated wire)

m
